Starters

HEF/HEP 109 starters

starters
Starters HEP
  • starters
  • Starters HEP

Around the world, large-displacement engines are used for mining, decentralized supply of electric energy, construction machinery, agricultural vehicles as well as marine and railway vehicles. No matter whether displacements of up to 180 l, high thermal loads or applications with additional hydraulic loads, Bosch HEF/HEP 109 starters ensure reliable starting – both as single-starter solutions or parallel-starter systems.

Learn more about the HEF109

Starter range for several off-highway applications

Bosch HEF/HEP 109 starters are available in different versions meeting the specific requirements of different environmental conditions and off-highway applications. The modular starter concept allows free selection of the performance features and even their partial combination (please see technical data table) – ideal for individual alignment for different specific requirements.

HEF 109 starter for high power requirements

With a nominal power output of up to 10 kW (24 V), HEF 109 starters are used to start diesel engines with a displacement of up to 30 l and under common cold start requirements. Their robust, compact and modular design makes them a great solution. The starter systems are designed for up to 14 000 hours of operation in stationary machines and other off-highway applications (approximately 800 000 km on highway). They are characterized by their high performance density and great cold start capability. On top of that, their weight is up to 50 % lighter compared to direct starters of the same performance class.

HEP 109 parallel-starter systems for large engines

Parallel starter systems (HEP 109), which consist of two or three synchronized HEP 109 starters, increase widely the scope of application. They are suitable for diesel engines with up to 90 l and gasoline engines with up to 180 l of displacement.

Rotatable ductile-iron flange for high flexibility

  • Eight possible mounting positions per part number
  • Increased flexibility and cost effectiveness with small and medium batch sizes

Protection class (IP57)

  • Additional protection of starters used for harsh off-highway applications
  • Protection in case of short-term submersion

Electrically insulated terminal 31

  • Improved corrosion protection
  • Ideal for marine applications and further special application requirements of construction vehicles and locomotives

Reversible thermal overload circuit breaker

  • Safe protection against overloads
  • Integrated into the starter harness

Integrated mechanical relay (IMR) with optional plug connector

  • Easy connection to the vehicle electrical system
  • No external control relay required
  • Controlled start via ECU is possible

Smooth engaging

  • Smooth electrical two-stage engaging
  • Increased service life of ring gear and starter pinion

Starter design in line with the specific application

  • Designed for high cold start performance, high starting torque and good start-up support
  • Different motor parts with a thermal behavior optimized for the specific application purpose

Noseless bearing principle

  • Optimized protection of the pinion shaft against dust, water and splash oil
  • High installation flexibility due to the pinionshaft bearing located inside the starter
Technical data
HEF109-M 24 V
HEF109-MP 24 V
HEF109-L 24 V
HEP109-MP 24 V (2 x)
HEP109-L 24 V (2 x)
HEP109-MP 24 V (3 x)
HEP109-L 24 V (3 x)
Mechanical peak performance
(At -20°C and SOC*=80 %)
7.62 kW
8.24 kW
10.0 kW
16.5 kW
20.0 kW
24.7 kW
30.0 kW
Typical scope of application:
displacement up to (diesel)
... 16 l
... 24 l
... 30 l
... 48 l
... 60 l
... 72 l
... 90 l
Typical scope of application:
displacement up to (gas / gasoline)
... 32 l
... 48 l
... 60 l
... 96 l
... 120 l
... 144 l
... 180 l
Max. battery cold testing
current EN
1 300 CCA
1 500 CCA
2 000 CCA
3 000 CCA (2 x 1500
CCA parallel)
4 000 CCA
(2 x 2 000
CCA parallel)
4 500 CCA
(3 x 1 500
CCA parallel)
6 000 CCA
(3 x 2 000
CCA parallel)
Starter weight
11.6 kg
<14 kg
<17 kg
2 x 16.5 kg
2 x 19.5 kg
3 x 16.5 kg
3 x 19.5 kg
Pole housing diameter
109 mm
109 mm
109 mm
109 mm
109 mm
109 mm
109 mm
Installation length
(starter flange /
commutator bearing cap)
287.5 mm
287.5 mm
319.5 mm
287.5 mm
319.5 mm
287.5 mm
319.5 mm
Typical control current
2 A
2 A
2 A
2 x 2 A
2 x 2 A
3 x 2 A
3 x 2 A
Related products (3)
Bosch eXchange

Bosch eXchange

Remanufactured products
Read more
Spark plugs

Industrial Spark Plugs

Reliability of operation for gas engines
Read more

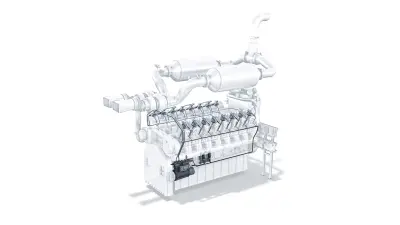

Diesel components
